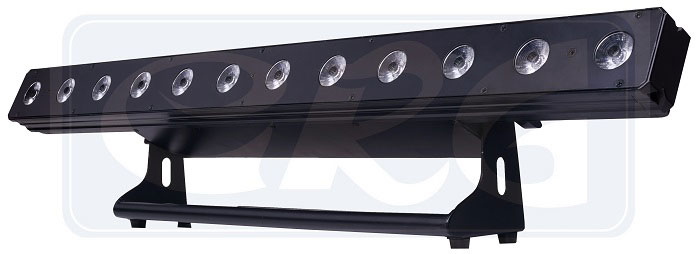

E-B14461 Six strip lights
Entertainment Lighting
PRODUCT DETAILS
Uses 12 12W Six RGBWA + UV LED as the light source, the light beam angle of 250, each light source can be controlled individually, in combinations of three-dimensional space projected dynamic graphics, there is a strong addition to DMX control of RDM control technology, to create a very bright lighting graphical effects.
Optics
LED type: single 12W Six RGBWA + UV LED;
Light beam angle: 250 (optional 45 ° optical lens);
Average life expectancy: ≥50,000H;
Colour
Uniform RGBWA + UV color mixing system and rainbow effect;
Create unlimited dynamic, unlimited color changes;
effect
15 kinds of built-in programs to choose from;
Fast electronic strobe: 1 ~ 25 Hz;
Dimming mode: two kinds;
Dimming curve: four kinds;
Control and Programming
Control channel: six kinds of channel mode (2/6/8/12/74/78);
Protocol: standard DMX512 protocol, RDM protocol;
Data Connection: Three core / pentandra XLR input / output;
Display: 0802 LCD display operation panel;
software
Optics
LED type: single 12W Six RGBWA + UV LED;
Light beam angle: 250 (optional 45 ° optical lens);
Average life expectancy: ≥50,000H;
Colour
Uniform RGBWA + UV color mixing system and rainbow effect;
Create unlimited dynamic, unlimited color changes;
effect
15 kinds of built-in programs to choose from;
Fast electronic strobe: 1 ~ 25 Hz;
Dimming mode: two kinds;
Dimming curve: four kinds;
Control and Programming
Control channel: six kinds of channel mode (2/6/8/12/74/78);
Protocol: standard DMX512 protocol, RDM protocol;
Data Connection: Three core / pentandra XLR input / output;
Display: 0802 LCD display operation panel;
software
Software upgrade: update software via DMX signal easily and quickly upgrade;
Intelligent temperature protection to ensure the LED life;
Light structure
Aluminum structure;
Power and power
Input voltage: AC 100V ~ 240V, 50 / 60Hz;
Power Rating: 150W;
other
Degree of protection: IP 20;
Working environment: -15 ℃ ~ 45 ℃;
size and weight
Lamp Size: 900mm * 100mm * 145mm;
Weight: 6 kgs;
Intelligent temperature protection to ensure the LED life;
Light structure
Aluminum structure;
Power and power
Input voltage: AC 100V ~ 240V, 50 / 60Hz;
Power Rating: 150W;
other
Degree of protection: IP 20;
Working environment: -15 ℃ ~ 45 ℃;
size and weight
Lamp Size: 900mm * 100mm * 145mm;
Weight: 6 kgs;
