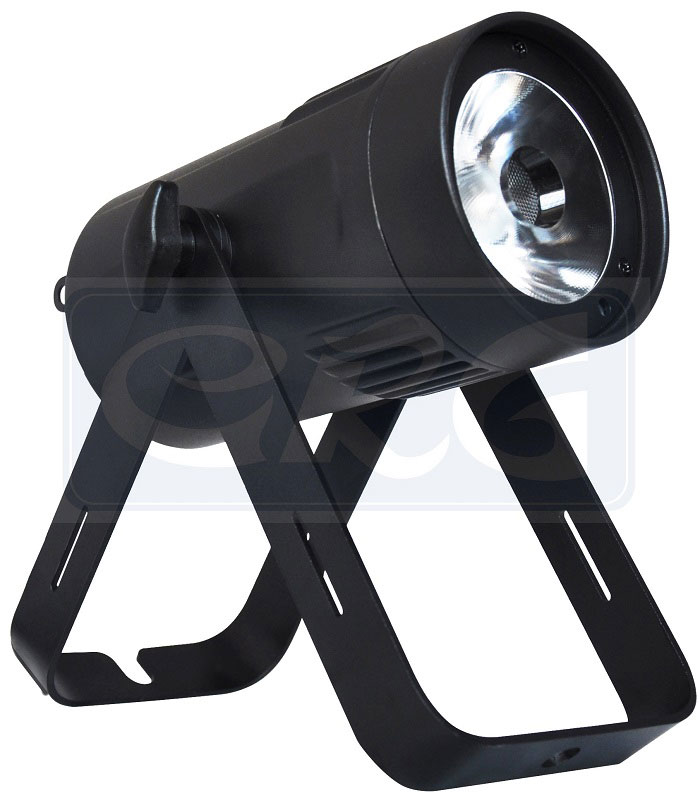

E-P1541 Four small downlights
Entertainment Lighting
PRODUCT DETAILS
Using single 15W RGBW Quad lamp beads as the light source, the light beam angle of 40, all-aluminum structure, no fan of natural cooling, high-precision constant current control mode, can be realized independently 0-255 RGBW brightness adjustment, color change rich, intense light beam can be manufactured very bright lighting effects.
Optics
LED Type: Four single 15W RGBW lamp beads;
Light beam angle: 40 (optional 10 ° / 45 ° optical lens);
Average life expectancy: ≥50,000H;
Colour
Uniform RGBW color mixing system and rainbow effect;
Create unlimited dynamic, unlimited color changes;
effect
4 kinds of built-in programs to choose from;
Fast electronic strobe: 1 ~ 2 5 Hz;
Dimming mode: two kinds;
Control and Programming
Control Channel: Three-channel mode (4/6/7);
Protocol: standard DMX512 protocol, RDM protocol;
Data Connection: Three core XLR input / output;
Display: Digital display operation panel;
software
Optics
LED Type: Four single 15W RGBW lamp beads;
Light beam angle: 40 (optional 10 ° / 45 ° optical lens);
Average life expectancy: ≥50,000H;
Colour
Uniform RGBW color mixing system and rainbow effect;
Create unlimited dynamic, unlimited color changes;
effect
4 kinds of built-in programs to choose from;
Fast electronic strobe: 1 ~ 2 5 Hz;
Dimming mode: two kinds;
Control and Programming
Control Channel: Three-channel mode (4/6/7);
Protocol: standard DMX512 protocol, RDM protocol;
Data Connection: Three core XLR input / output;
Display: Digital display operation panel;
software
Software upgrade: update software via DMX signal easily and quickly upgrade;
Intelligent temperature protection to ensure the LED life;
Light structure
Alloy shell;
Power and power
Input voltage: AC 100V-240V, 50 / 60Hz;
Rated power: 17 W;
other
Degree of protection: IP 20;
Working environment: -15 ℃ ~ 45 ℃;
size and weight
Lamp Size: 135mm * 203mm * 172mm;
NW: 1.4kgs;
Intelligent temperature protection to ensure the LED life;
Light structure
Alloy shell;
Power and power
Input voltage: AC 100V-240V, 50 / 60Hz;
Rated power: 17 W;
other
Degree of protection: IP 20;
Working environment: -15 ℃ ~ 45 ℃;
size and weight
Lamp Size: 135mm * 203mm * 172mm;
NW: 1.4kgs;
