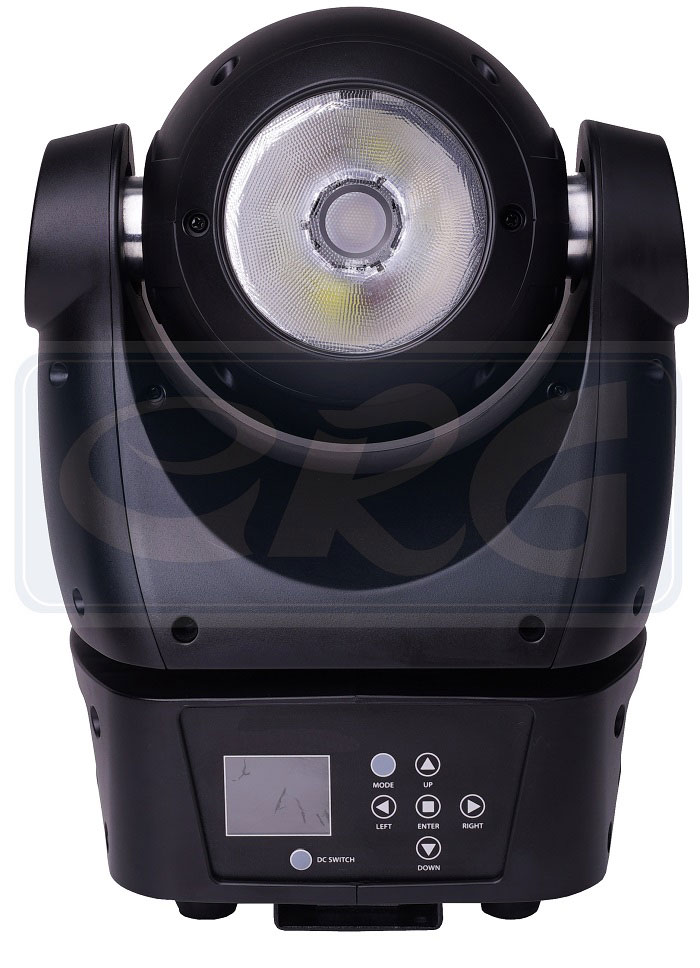

R-M60B Four Moving Head beam lamp
Entertainment Lighting
PRODUCT DETAILS
Four single use 60W RGBW LED light source, the light beam angle 40, super-beam projection, X-axis and Y-axis rotation can be unlimited, there is a strong addition to DMX control of RDM control technology, with strong dynamic multi the beam can be manufactured very bright lighting effects.
Optics
LED Type: Four single 60W RGBW LED;
Light beam angle: 40;
Average life expectancy: ≥50,000H;
X, Y axis angle of movement
Unlimited X axis (8bit / 16bit precision scanning);
Y axis Unlimited (8bit / 16bit precision scanning);
Colour
Uniform RGBW color mixing system and rainbow effect;
Create unlimited dynamic, unlimited color changes;
effect
A variety of built-in programs to choose from;
Fast electronic strobe: 1 ~ 2 5 Hz;
Dimming Mode: Five;
Control and Programming
Optics
LED Type: Four single 60W RGBW LED;
Light beam angle: 40;
Average life expectancy: ≥50,000H;
X, Y axis angle of movement
Unlimited X axis (8bit / 16bit precision scanning);
Y axis Unlimited (8bit / 16bit precision scanning);
Colour
Uniform RGBW color mixing system and rainbow effect;
Create unlimited dynamic, unlimited color changes;
effect
A variety of built-in programs to choose from;
Fast electronic strobe: 1 ~ 2 5 Hz;
Dimming Mode: Five;
Control and Programming
Control Channel: Three-channel mode (16/18/20);
Protocol: standard DMX512 protocol, RDM protocol;
Data Connection: Three core / pentandra XLR input / output;
Display: 1.8-inch LCD display, operator panel with rechargeable batteries, no power can be provided to access the menu address code and other settings;
User-friendly display modes in DMX interface, press "UP" key to quickly replace the display 180 ° inversion;
software
Software upgrade: update software via DMX signal easily and quickly upgrade;
Quiet fan, intelligent speed;
Intelligent temperature protection to ensure the LED life;
Light structure
Aluminum structure + flame-retardant plastic housing;
Power and power
Input voltage: AC 100V-240V, 50 / 60Hz;
Rated power: 120W;
other
Degree of protection: IP 20;
Working environment: -15 ℃ ~ 45 ℃;
size and weight
Lamp Size: 236mm * 187mm * 305mm;
NW: 5kgs;
Protocol: standard DMX512 protocol, RDM protocol;
Data Connection: Three core / pentandra XLR input / output;
Display: 1.8-inch LCD display, operator panel with rechargeable batteries, no power can be provided to access the menu address code and other settings;
User-friendly display modes in DMX interface, press "UP" key to quickly replace the display 180 ° inversion;
software
Software upgrade: update software via DMX signal easily and quickly upgrade;
Quiet fan, intelligent speed;
Intelligent temperature protection to ensure the LED life;
Light structure
Aluminum structure + flame-retardant plastic housing;
Power and power
Input voltage: AC 100V-240V, 50 / 60Hz;
Rated power: 120W;
other
Degree of protection: IP 20;
Working environment: -15 ℃ ~ 45 ℃;
size and weight
Lamp Size: 236mm * 187mm * 305mm;
NW: 5kgs;
