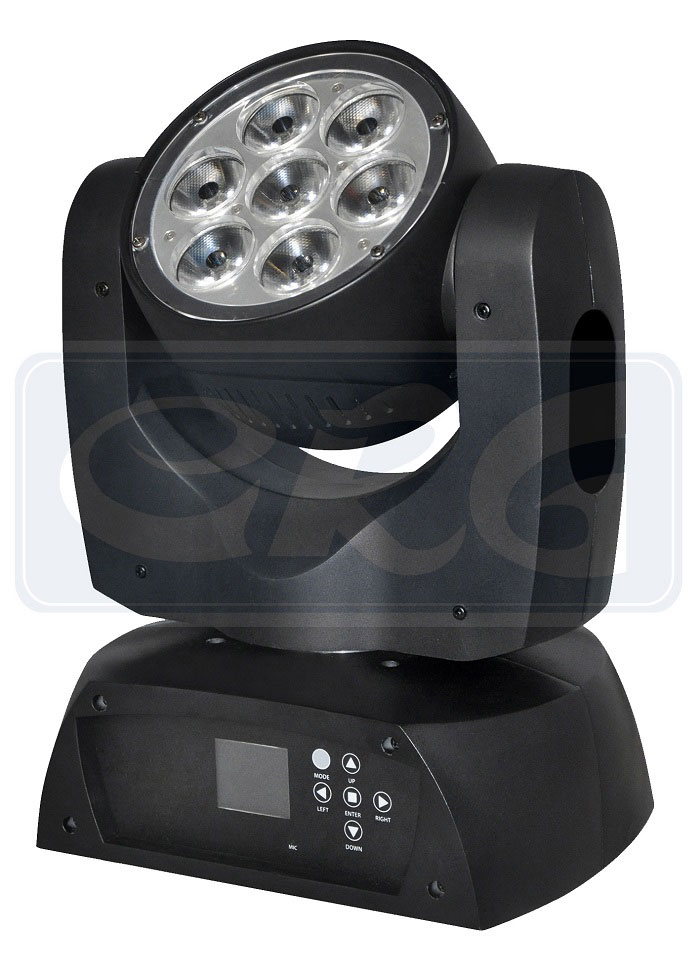

R-M10541 Four Head Light
Entertainment Lighting
PRODUCT DETAILS
Using seven 15W RGBW Quad lamp beads as the light source, the light beam angle 70, each light source can be controlled individually, in combinations of three-dimensional space projected dynamic graphics, X and Y axes can be unlimited rotation, in addition to the DMX control but also have a strong RDM control technology.
Optics
LED Type: Four single 15W RGBW lamp beads;
Light beam angle: 70;
Average life expectancy: ≥50,000H;
X, Y axis angle of movement
Unlimited X axis (8bit / 16bit precision scanning);
Y axis Unlimited (8bit / 16bit precision scanning);
Colour
Uniform RGBW color mixing system and rainbow effect;
Create unlimited dynamic, unlimited color changes;
effect
14 kinds of built-in programs to choose from;
Fast electronic strobe: 1 ~ 25 Hz;
Control and Programming
Control channel: four kinds of channel mode (5/11/19/41);
Protocol: standard DMX512 protocol, RDM protocol;
Data Connection: Three core / pentandra XLR input / output;
Display: 1.8-inch LCD display operation panel;
User-friendly display modes in DMX interface, press "UP" key to quickly replace the display 180 ° inversion;
software
Optics
LED Type: Four single 15W RGBW lamp beads;
Light beam angle: 70;
Average life expectancy: ≥50,000H;
X, Y axis angle of movement
Unlimited X axis (8bit / 16bit precision scanning);
Y axis Unlimited (8bit / 16bit precision scanning);
Colour
Uniform RGBW color mixing system and rainbow effect;
Create unlimited dynamic, unlimited color changes;
effect
14 kinds of built-in programs to choose from;
Fast electronic strobe: 1 ~ 25 Hz;
Control and Programming
Control channel: four kinds of channel mode (5/11/19/41);
Protocol: standard DMX512 protocol, RDM protocol;
Data Connection: Three core / pentandra XLR input / output;
Display: 1.8-inch LCD display operation panel;
User-friendly display modes in DMX interface, press "UP" key to quickly replace the display 180 ° inversion;
software
Software upgrade: update software via DMX signal easily and quickly upgrade;
Quiet fan, intelligent speed;
Intelligent temperature protection to ensure the LED life;
Light structure
Aluminum structure + flame-retardant plastic housing;
Power and power
Input voltage: AC 100V ~ 240V, 50 / 60Hz;
Rated power: 135W;
other
Degree of protection: IP 20;
Working environment: -15 ℃ ~ 45 ℃;
size and weight
Lamp Size: 258mm * 179mm * 351mm;
Weight: 4.5 kgs;
Quiet fan, intelligent speed;
Intelligent temperature protection to ensure the LED life;
Light structure
Aluminum structure + flame-retardant plastic housing;
Power and power
Input voltage: AC 100V ~ 240V, 50 / 60Hz;
Rated power: 135W;
other
Degree of protection: IP 20;
Working environment: -15 ℃ ~ 45 ℃;
size and weight
Lamp Size: 258mm * 179mm * 351mm;
Weight: 4.5 kgs;
