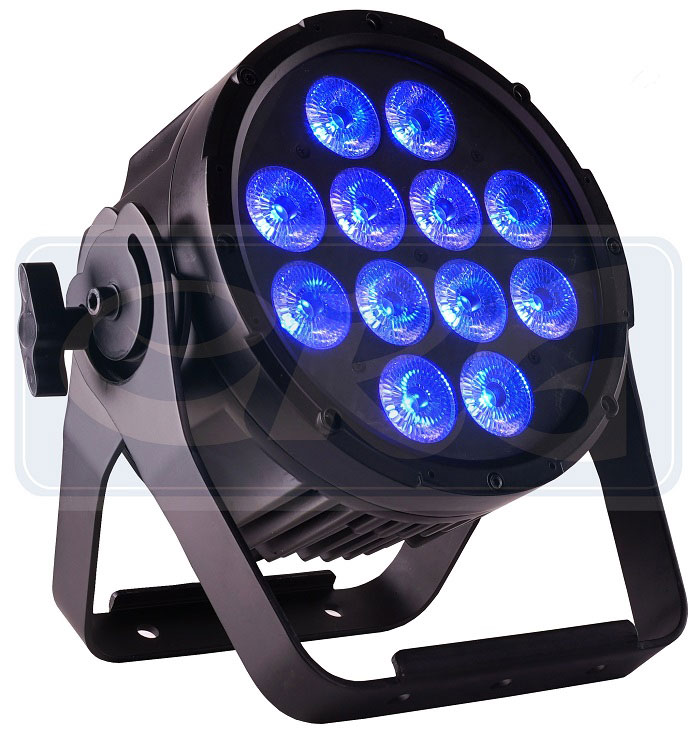

ER-C12051 Observing waterproof lights
Architectural / landscape
PRODUCT DETAILS
All-aluminum structure, no fan, depending on the nature of aluminum alloy radiator cooling, absolutely silent mode design, modeling lightweight fashion, easy to install. 12 Observing RGBWA LED 10W as the light source, the light beam angle of 150, with a variety of mixed color combination, so powerful that it becomes large-scale theatrical performances, an ideal stage lighting, background staining, dance halls, bars, landscape lighting and other places lamp selection. In addition to DMX control has a powerful RDM control technology.
Optics
LED type: single 10W Observing RGBWA LED;
Light beam angle: 150;
Average life expectancy: ≥50,000H;
Colour
RGBWA uniform color mixing system and rainbow effect;
Create unlimited dynamic, unlimited color changes;
effect
4 kinds of built-in programs to choose from;
Fast electronic strobe: 1 ~ 25 Hz;
Control and Programming
Control channel: four kinds of channel mode (2/3/5/8);
Protocol: standard DMX512 protocol, RDM protocol;
Data Connection: waterproof three core wire port XLR input / output;
Display: 0802 LCD display operation panel;
software
Optics
LED type: single 10W Observing RGBWA LED;
Light beam angle: 150;
Average life expectancy: ≥50,000H;
Colour
RGBWA uniform color mixing system and rainbow effect;
Create unlimited dynamic, unlimited color changes;
effect
4 kinds of built-in programs to choose from;
Fast electronic strobe: 1 ~ 25 Hz;
Control and Programming
Control channel: four kinds of channel mode (2/3/5/8);
Protocol: standard DMX512 protocol, RDM protocol;
Data Connection: waterproof three core wire port XLR input / output;
Display: 0802 LCD display operation panel;
software
Software upgrade: update software via DMX signal easily and quickly upgrade;
Intelligent temperature protection to ensure the LED life;
Light structure
Aluminum structure;
Power and power
Input voltage: AC 100V ~ 240V, 50 / 60Hz;
Rated power: 130W;
other
Protection class: IP 65;
Working environment: -15 ℃ ~ 45 ℃;
size and weight
Lamp Size: 297mm * 157mm * 290mm;
NW: 5.8kgs;
Intelligent temperature protection to ensure the LED life;
Light structure
Aluminum structure;
Power and power
Input voltage: AC 100V ~ 240V, 50 / 60Hz;
Rated power: 130W;
other
Protection class: IP 65;
Working environment: -15 ℃ ~ 45 ℃;
size and weight
Lamp Size: 297mm * 157mm * 290mm;
NW: 5.8kgs;
